PRODUCT DETAILS

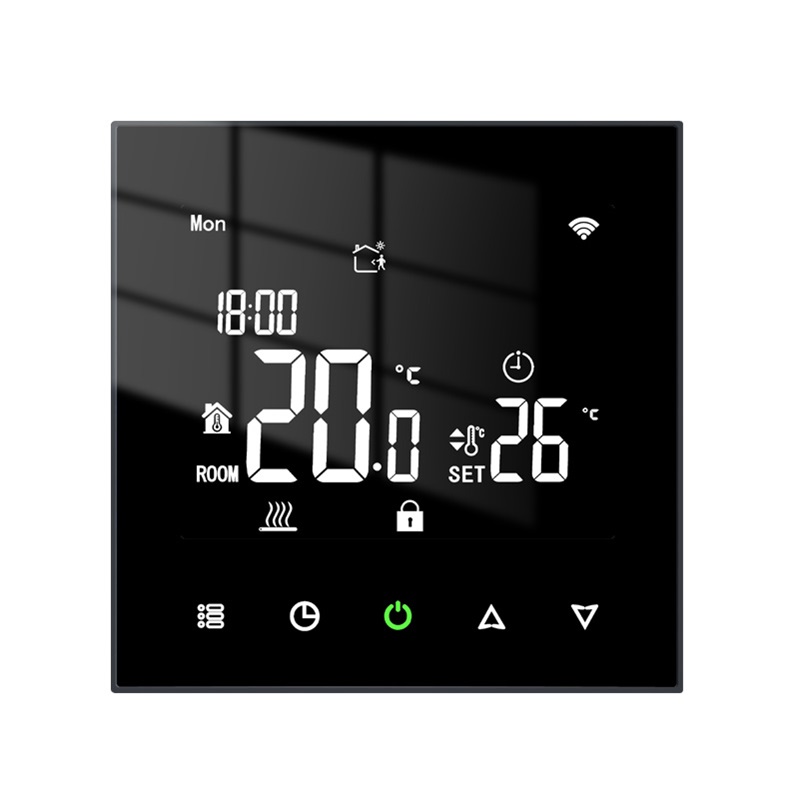

Floor heating thermostat SS100H Series

[ LCD Touch Display ] - Elegant appearance, one face design, anti-scratch. Large LCD touch screen display with backlight, easy to read.

[ APP /Voice Control ] - Smart thermostat that can be controlled by your phone before you come back home. (APP: Tuya / Smart life. voice control by Google home Alexa)

 [ Manual/ Auto Mode] - Free to choose manual mode or auto mode for different purposes.

[ Accurate Temperature ] - Internal sensor floor sensor, perceptive ambient temperature, and the floor's temperature. Automatically obtain the temperature, 1°C accuracy.

[ Weekly Programmable ] - The thermostat supports different temperature setting accordingly with 6-time modes daily.

[ Memory Function ] - No need to worry about power failure, data memory when power is off.

[ Children Lock ] - The keypad locking function is designed to prevent children from operating by mistake.

[ Application ] - Suitable for electric heating/water gas boiler/water heating.Perfect for home, office, shopping mall, hotel, etc.

Specifications:

-- Type: Wi-Fi smart thermostat

-- Voltage:110-230V AC,50/60HZ

-- Max. Current Load: 16A/3A

-- Temperature Accuracy: 1℃

-- Temperature Setting: 5-35℃

-- Key: Touch Key

-- Material: anti-flammable ABS+PC

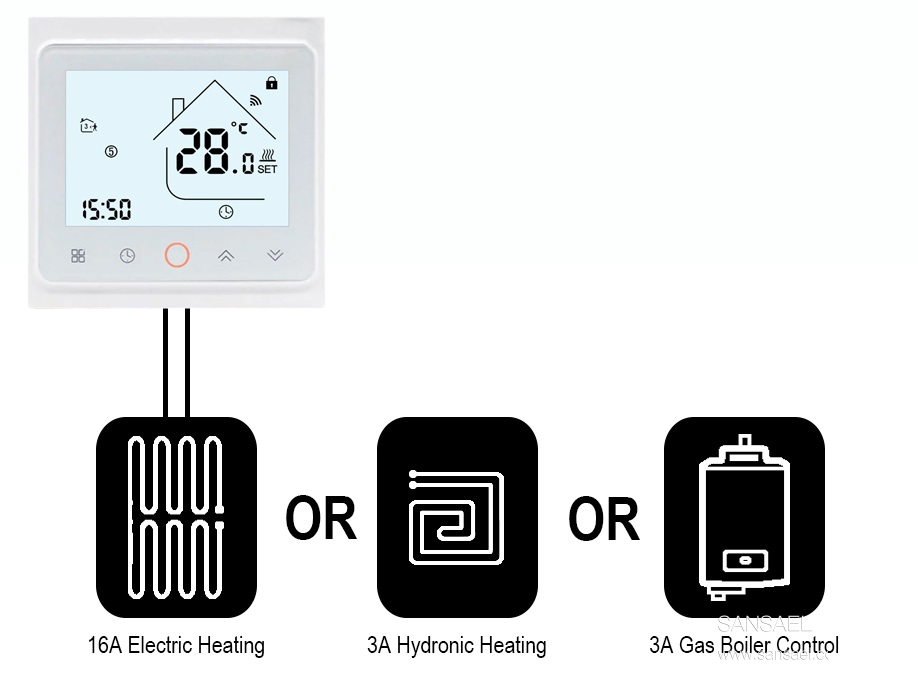

APPLICATION

MODEL SELECT

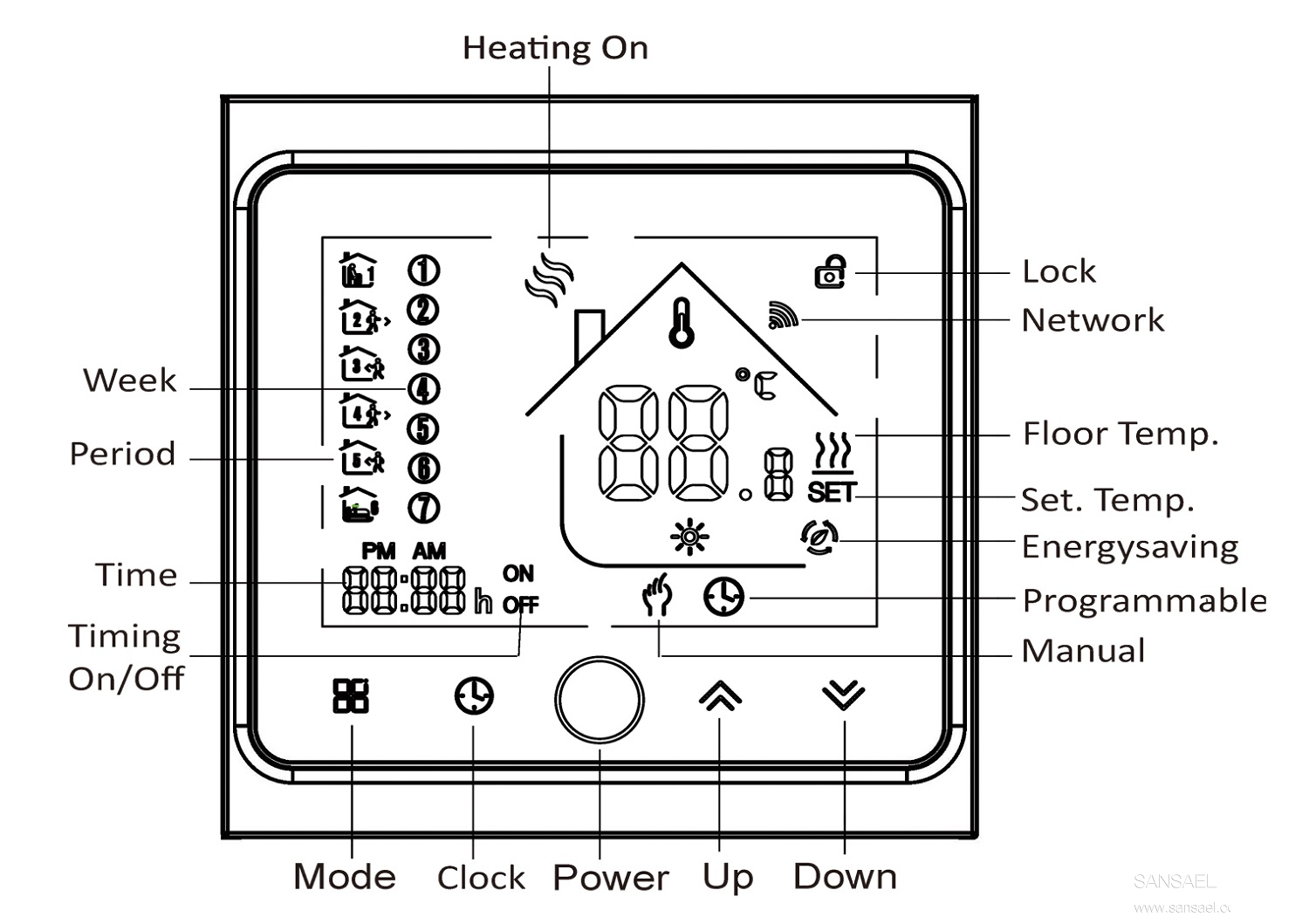

PRODUCT DISPLAY

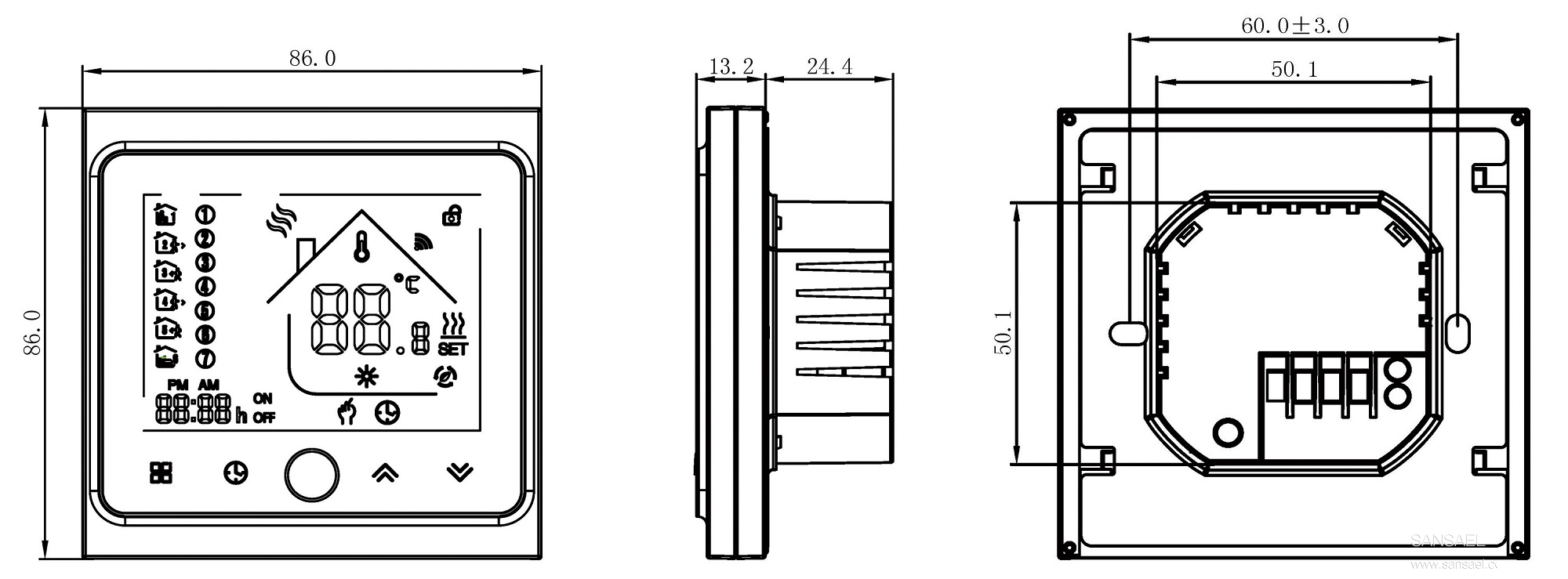

DIMENSION

INSTALLATION

Your thermostat is suitable for installation within a standard 86mmpattress box or European 60mm pattress box.

Step 1. Keep power off. See Fig 1.

Step 2. Remove the mounting plate by rotating the LCD part. See Fig 2.

Step 3. Connect the power supply, load into the appropriate terminals(see "Wiring your thermostat" for details and Fig 3).

Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

Step 5. Fasten the body of the thermostat and the mounting plate through rotating. See Fig 5.

Step 6.Installation complete. See Fig 6.

WIRING DIAGRAM
