PRODUCT DETAILS

Floor thermostat RTC70.26

Specifications:
Material: ABS + PC
Size: 90 * 90 * 80mm/3.54*3.54*3.15"
Installation method: Standard 86 installation
Ambient temperature: 0-60 ℃
Detection accuracy: 1 ℃
Setting temperature: 10-40 ℃
Resistive load: 16A
Measuring object: space temperature

Feature：

• The manual thermostat is designed for electronic floor heating and other electrical heating elements. It controls the temperature with an NTC sensor placed externally. The thermostat gets the room temperature through its floor sensor, and the heating contact will close when the room temperature rises above the set point, and vice versa. It fits into the standard single switch back box well, and is worldwide suitable.
• -Designed for floor sensor and other electrical heating elements
• -Simple operation, no need to work out how to program
• -Automatic safety power switch, On/off control output for heating device
• -With manual switch and knob for easy operation
• -Can fit into a standard single switch backbox
• -Mini size junction box and worldwide suitable.
• -LED indicator is light when heating is on
• -Full Installation and Operation Instructions Included

APPLICATION

MODEL SELECT

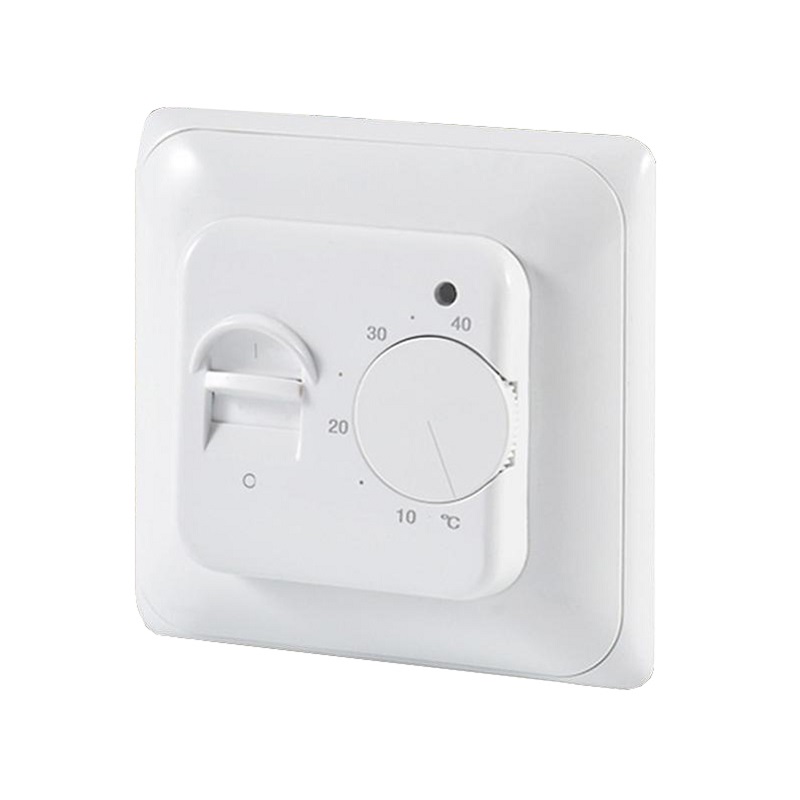

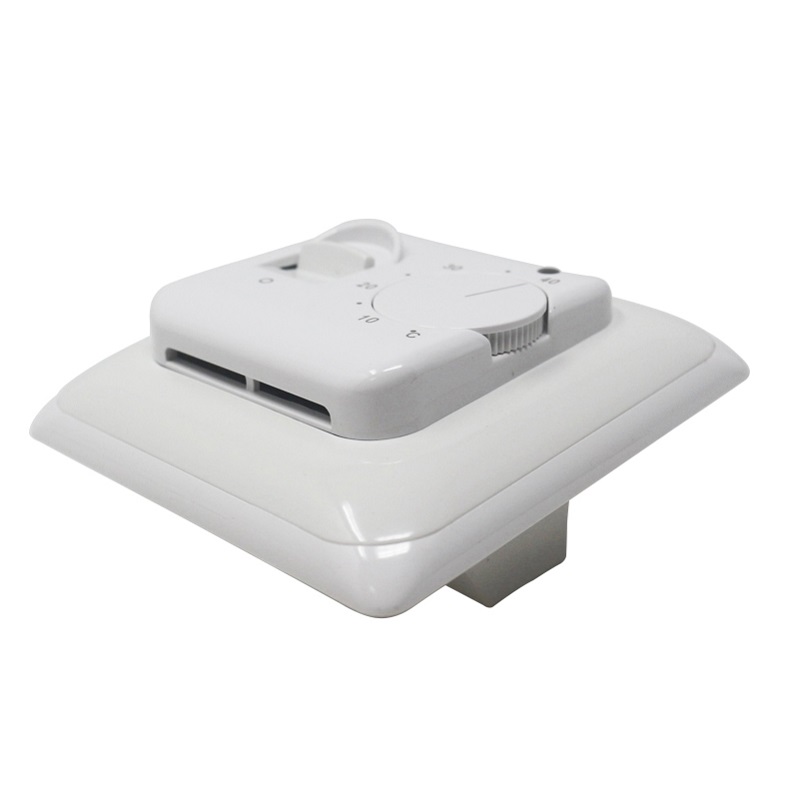

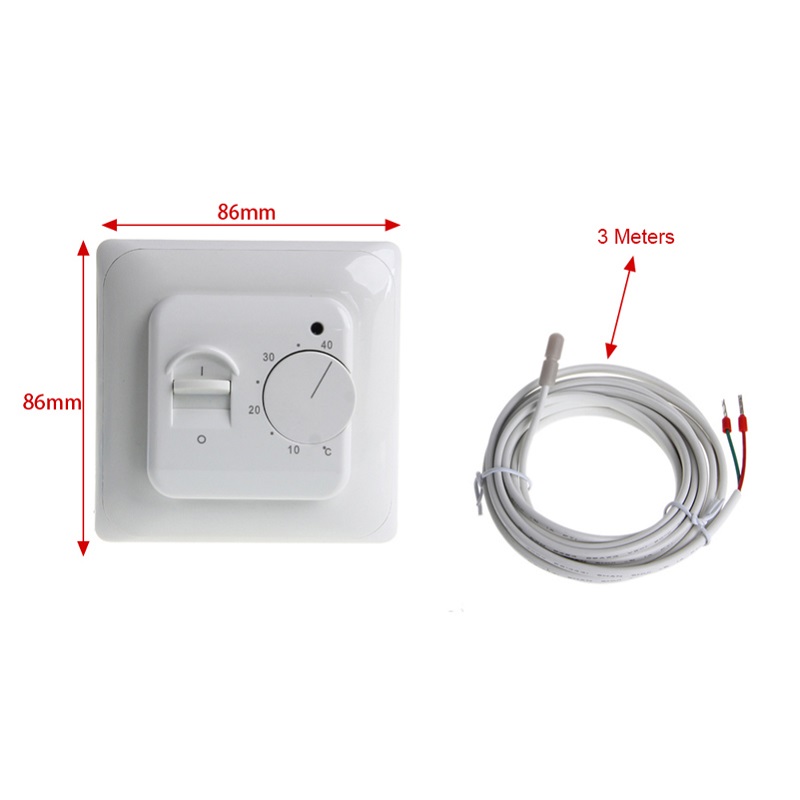

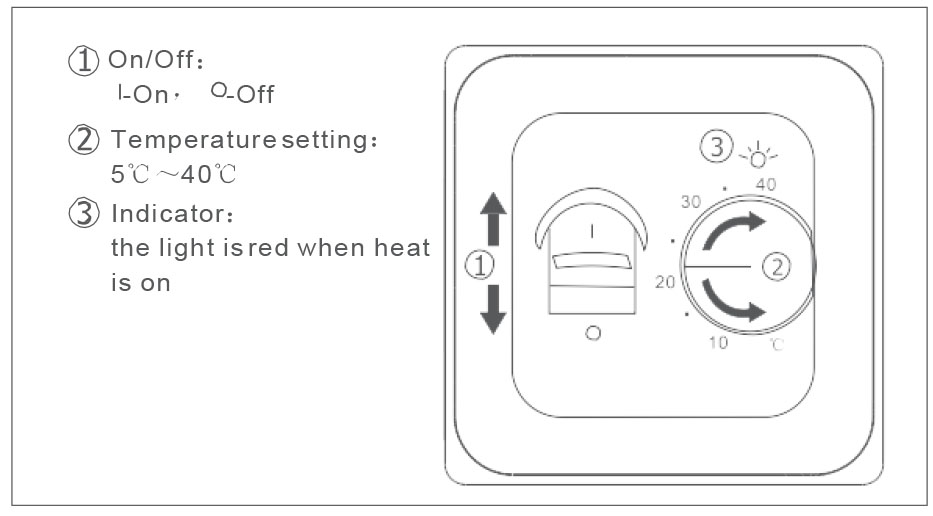

PRODUCT DISPLAY

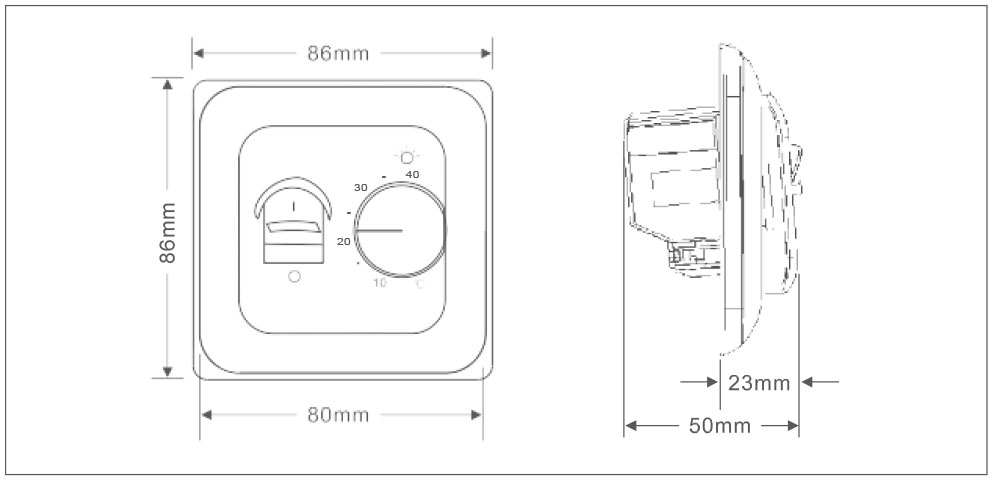

DIMENSION

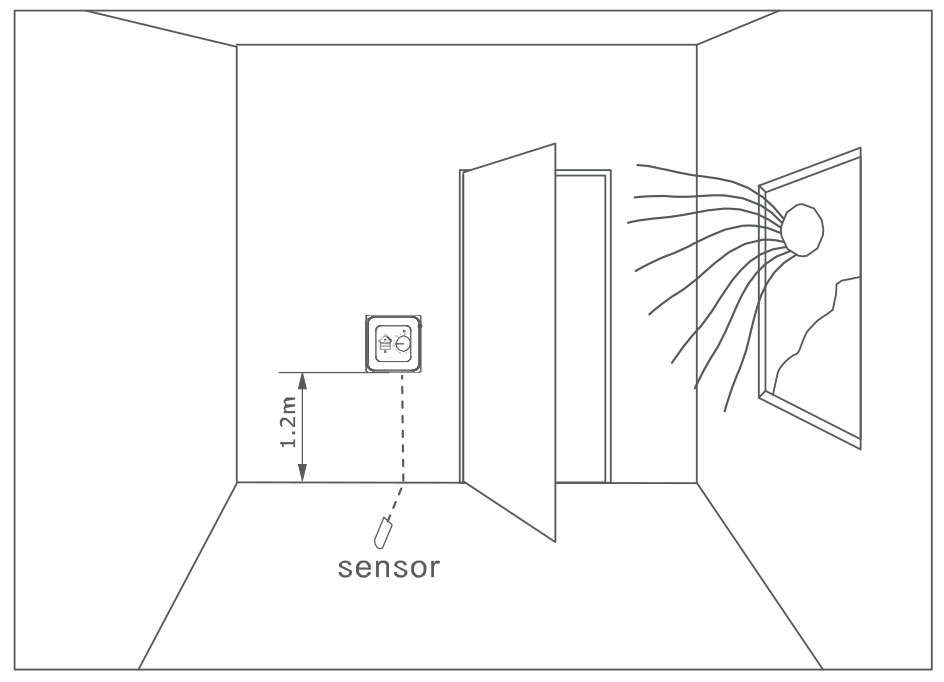

INSTALLTION

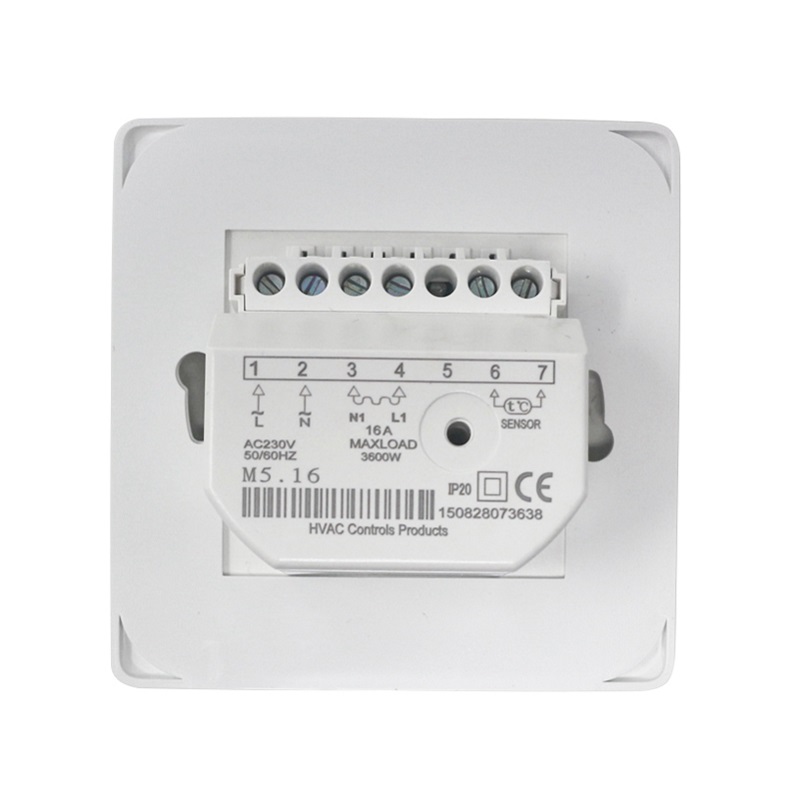

WIRING DIAGRAM
