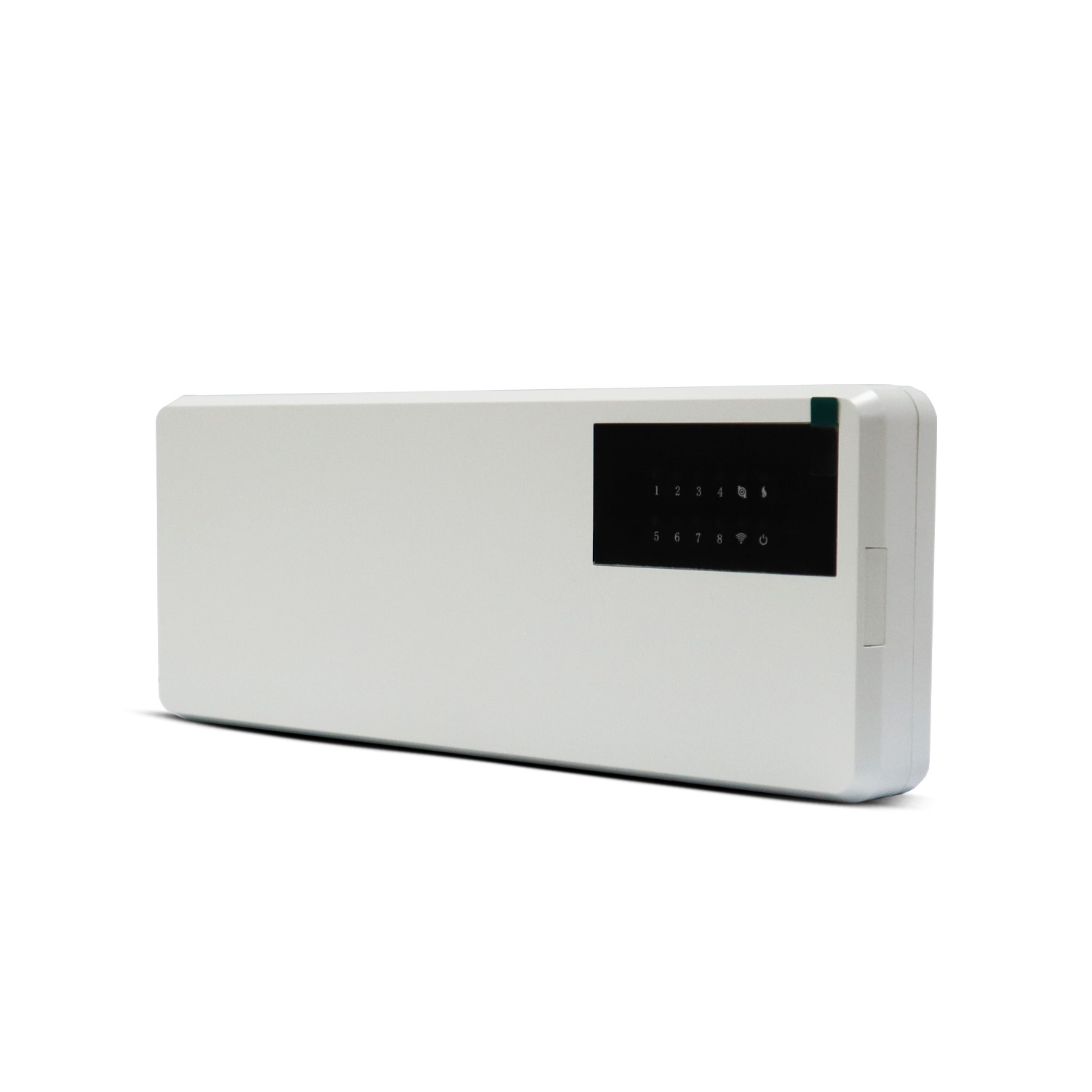

Wireless Central Controller Box Feature

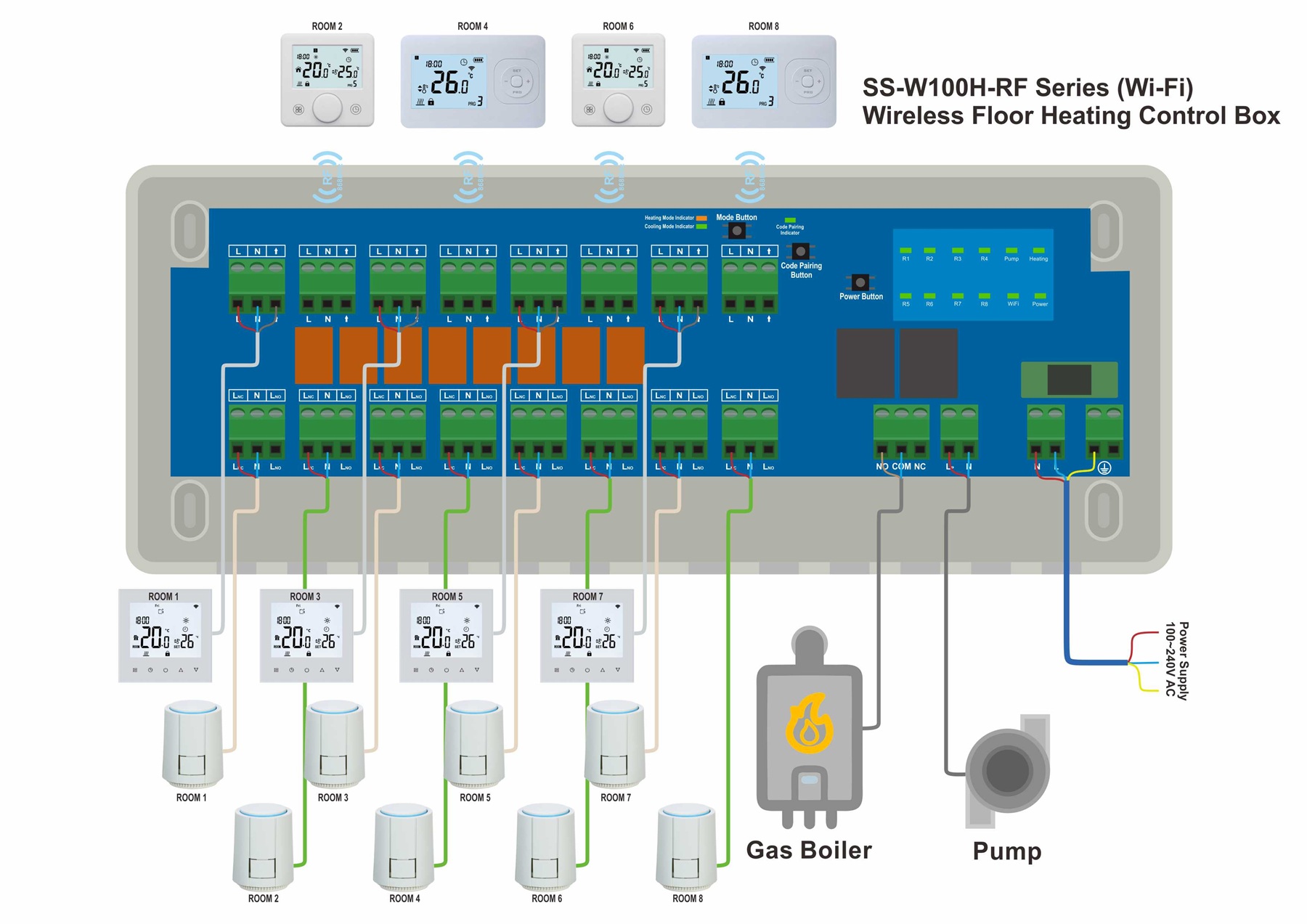

The wireless control box is used in floor heating systems. It can control boilers, circulation pumps, thermostats and actuators.

The control box can control the opening or closing of the boiler/circulating pump/electric actuator according to the temperature set by the user, so as to achieve the purpose of safety, comfort and energy saving.

One control box can control up to 8 Wireless thermostats, allowing 8 rooms/zones to have different temperatures.

Technical Parameters

Power supply: AC100~240V; 50/60Hz

Maximum current: 10A

Storage temperature: -20~70℃

Ambient humidity: -20~60℃

Product size: length 280mm x width 110mm x thickness 40mm

Shell material: flame retardant PC + ABS

Max control distance: about 200m

Actuator interface: 8 normally open/normally closed electric heat actuator

Thermostat interface: 8 wireless thermostats

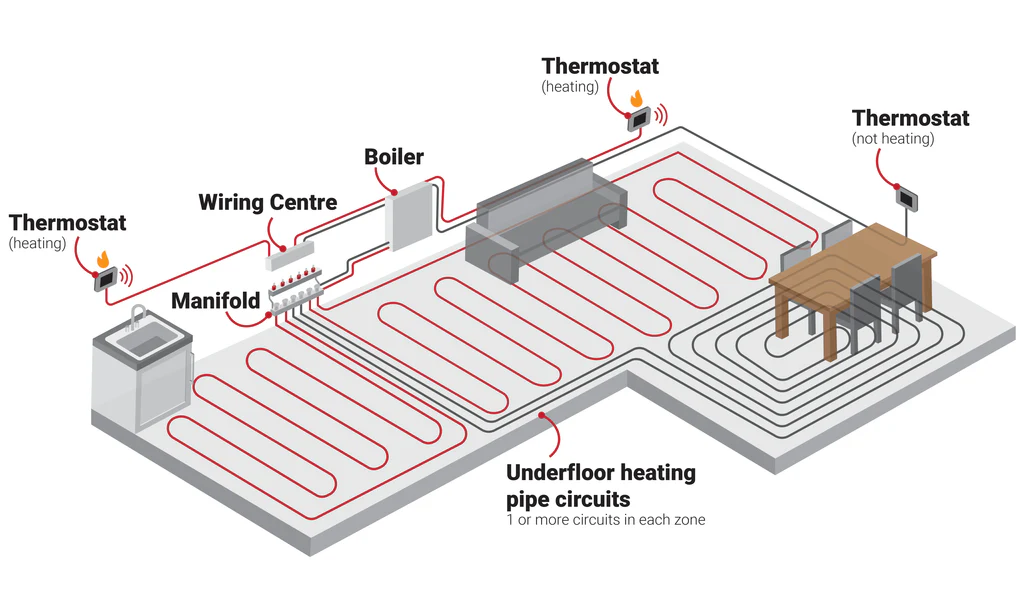

Underfloor heating is a highly efficient and environmentally-friendly way to heat your home. With UFH your rooms are heated from the floor up to the ceiling providing an even, ambient temperature that can be thermostatically controlled. Radiators, on the other hand, push heat outwards, leaving areas that are furthest from the radiator, much cooler. Here we explain in detail how underfloor heating works so you can get a better understanding.
