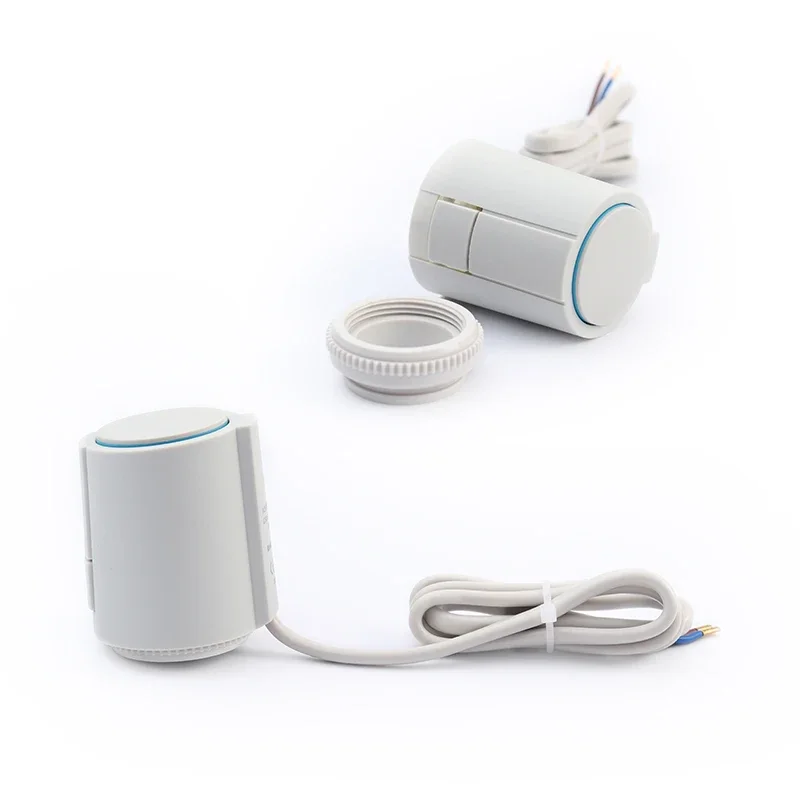

Features:

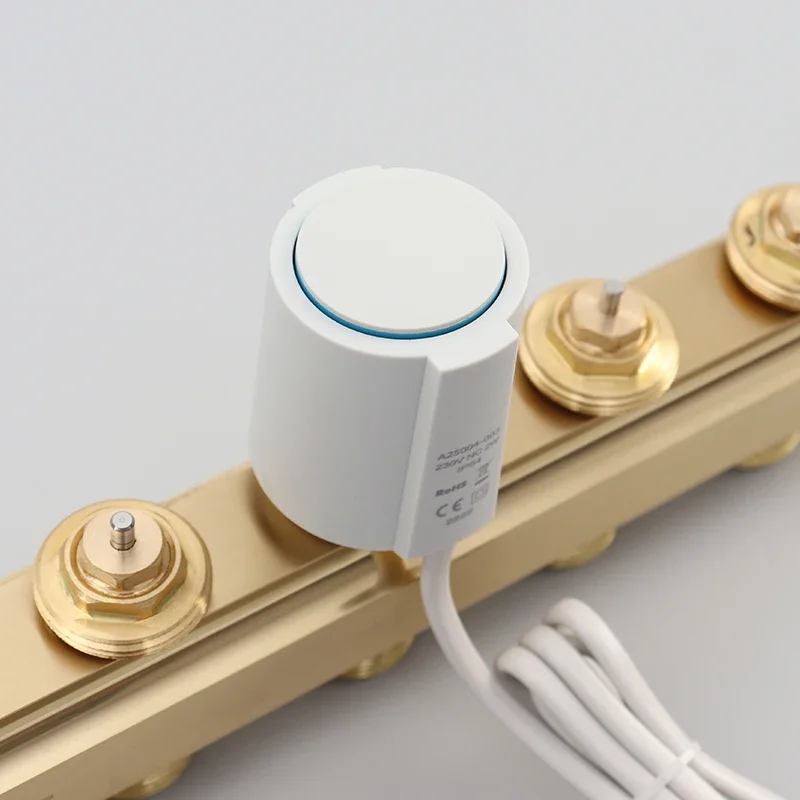

Used for opening and closing of floor heating water separator, central air conditioner (water system) and small valve.
Controls water flow through an underfloor heating system, suitable for temperature controlling at home, in hotels, malls, etc.

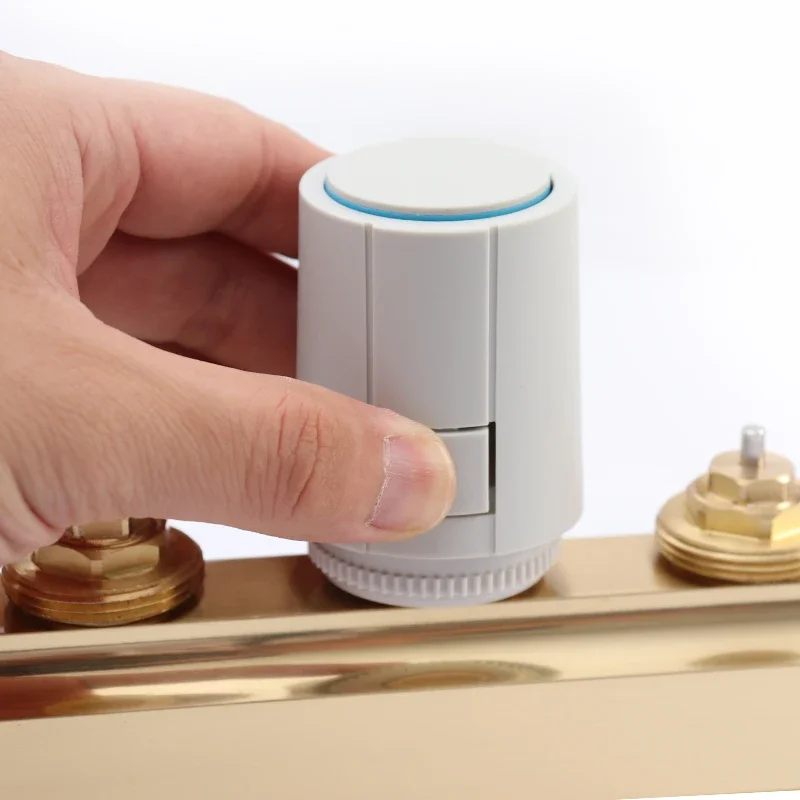

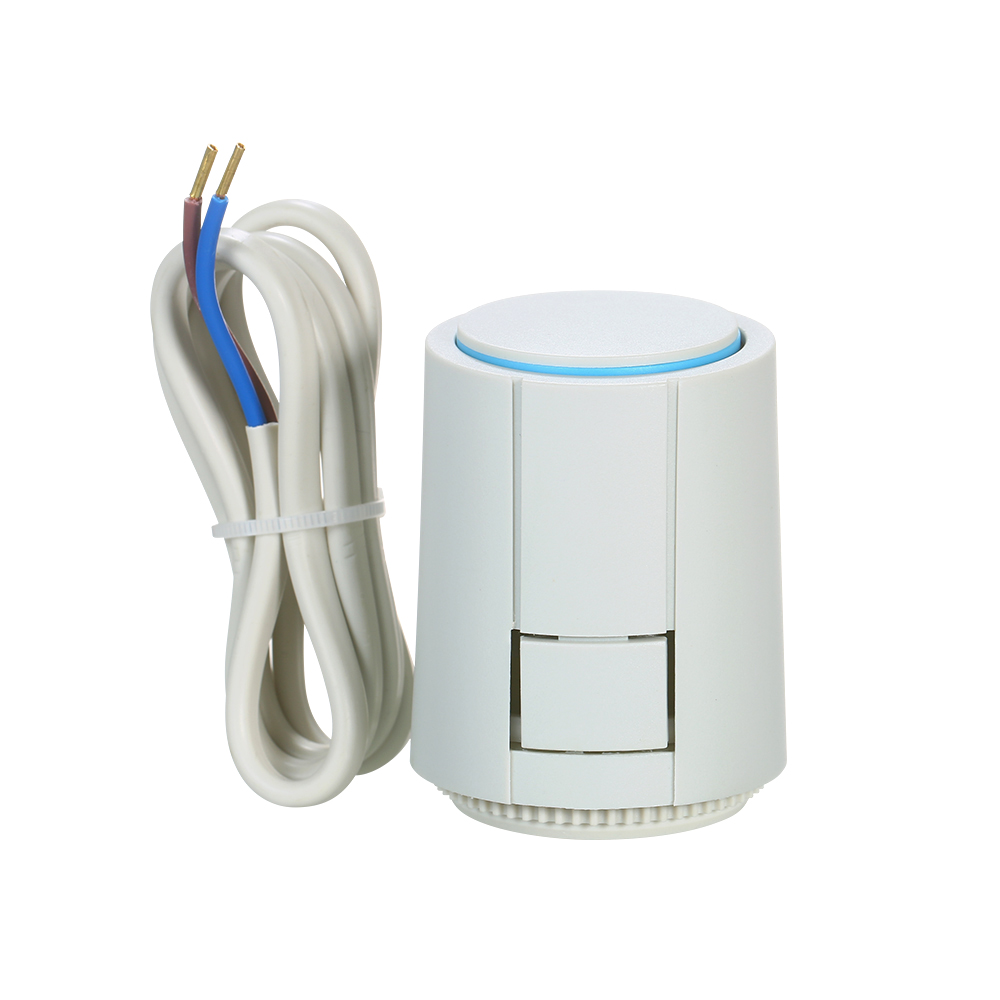

Easy installation, 2-wire connection with one valve per loop, M30 * 1.5 installation size.
Normally closed actuator, automatically turn on when powered up, noiseless and maintenance-free.
Mine size, lightweight and space-saving. 2W low power comsumption, energy-saving.
Specifications:
Color: Light Grey
Material: PA66
Voltage: AC 230V, 50/60Hz
Power: 2W
Inrush Current: Max. 550mA
Type: NC (Normally Closed)/ NO (Normally Open)

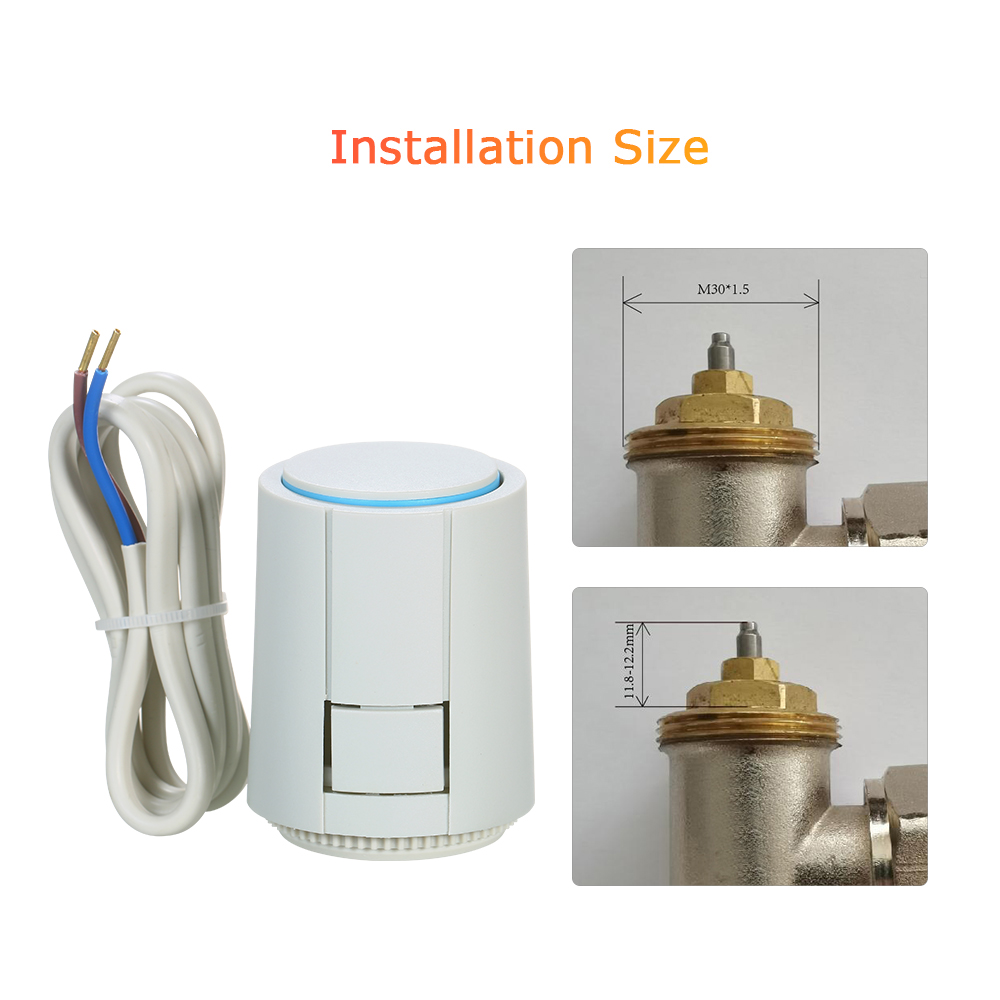

Installation Size: M30 * 1.5
Protection Class: IP54
Storage Temperature: -25℃~60℃
Item Size: Approx. 44 * 57mm / 1.7 * 2.2in (Dia * H)
Package Size: 7.5 * 5.5 * 8.5cm / 3.0 * 2.2 * 3.3in
Package Weight: 131g / 4.6oz
